The BunkerStacker2000 “self-propelled” Drive Over Hopper (DOH) & Stacker is designed to make unloading grain from truck trailers into temporary storage quick and easy.

The BunkerStacker 2000 is perfect for grain distributors and farmers with temporary storage facilities.

The BunkerStacker2000 is quick and easy to transport, essential design elements such as hydraulically operated jacks make set-up and maneuvring a one man operation.

It has a design capacity of 600 TPH (22,000 bushels) for wheat and slightly less for canola, with the ability to unload in minutes making site operations more efficient and effective.

Kilic Engineering has been manufacturing and developing the BunkerStacker2000 for temporary storage sites since 1999 as well as all manner of material handling equipment for grain.


FEATURES

  • Self-propelled and controlled from operator platform situated at Underbelly Belt Conveyor (UBB)

  • DOH, UBB frame and Stacker all lock together so entire machine can be self-propelled at once

  • Generating set (Genset) provides power to UBB and Stacker

  • Genset on Stacker bolted on slide frame so it can be rolled in and out for easy maintenance

  • Genset comes with canopy for noise reducing properties

  • Electric motors on UBB and Stackers belt drives. Electrics on DOH and Stacker hard wired but plugged connections to Genset for ease of disassembly and transportation

  • Suitable for wheat and canola

  • Hydraulic jacks on DOH and Stacker for levelling machines

  • Individually actuated hungry boards on DOH - hydraulic

  • Pendant controls on Stacker

  • Fire extinguishers provided

  • Hydraulic hopper grain valve to optimise flow to the stacker and bunker


• Easy to operate
• Safe
• Quick to set up
• Quick to transport


Watch the video...



BunkerStacker2000

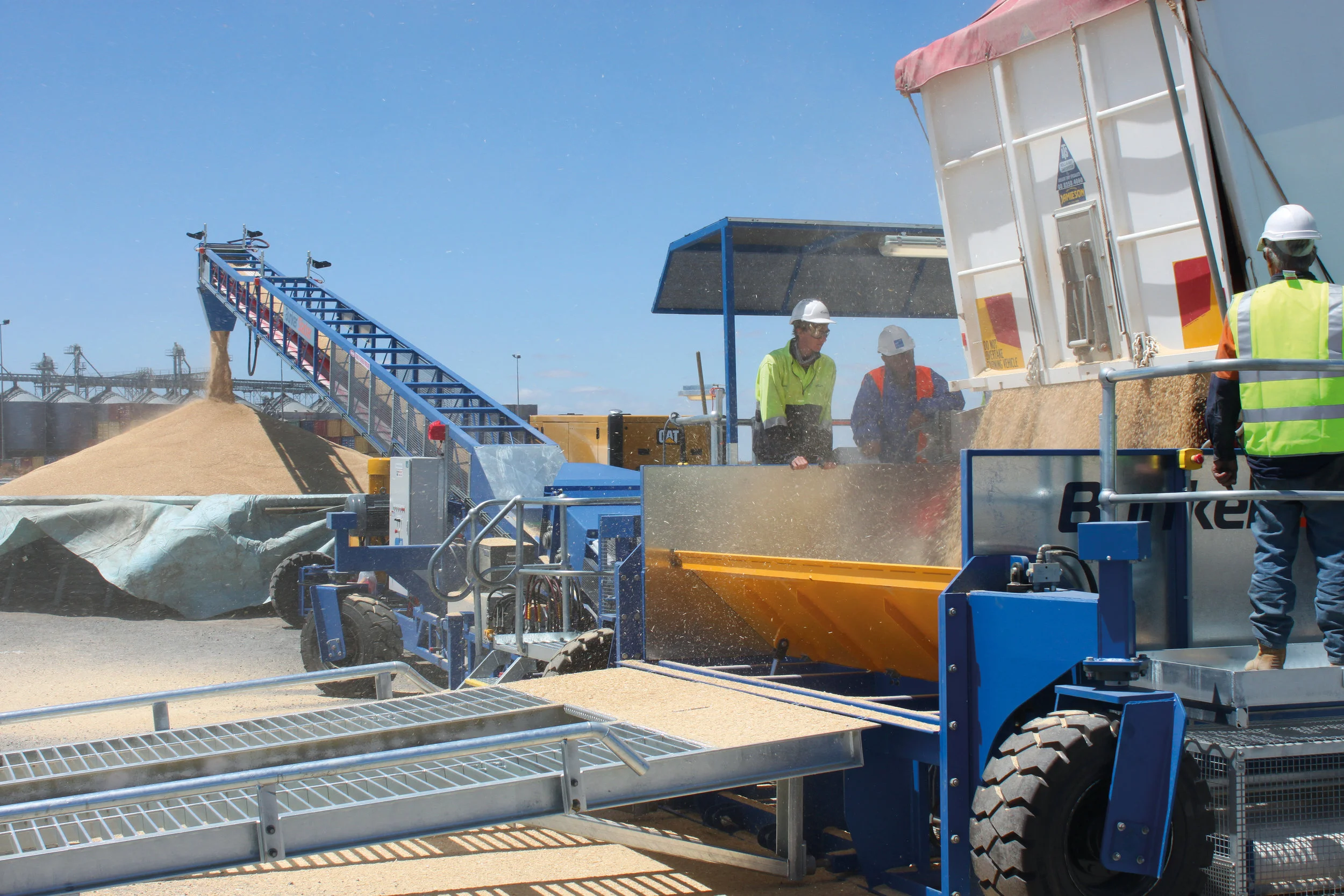

Drive Over Hopper in operation

Raised hungry boards on Drive Over Hopper

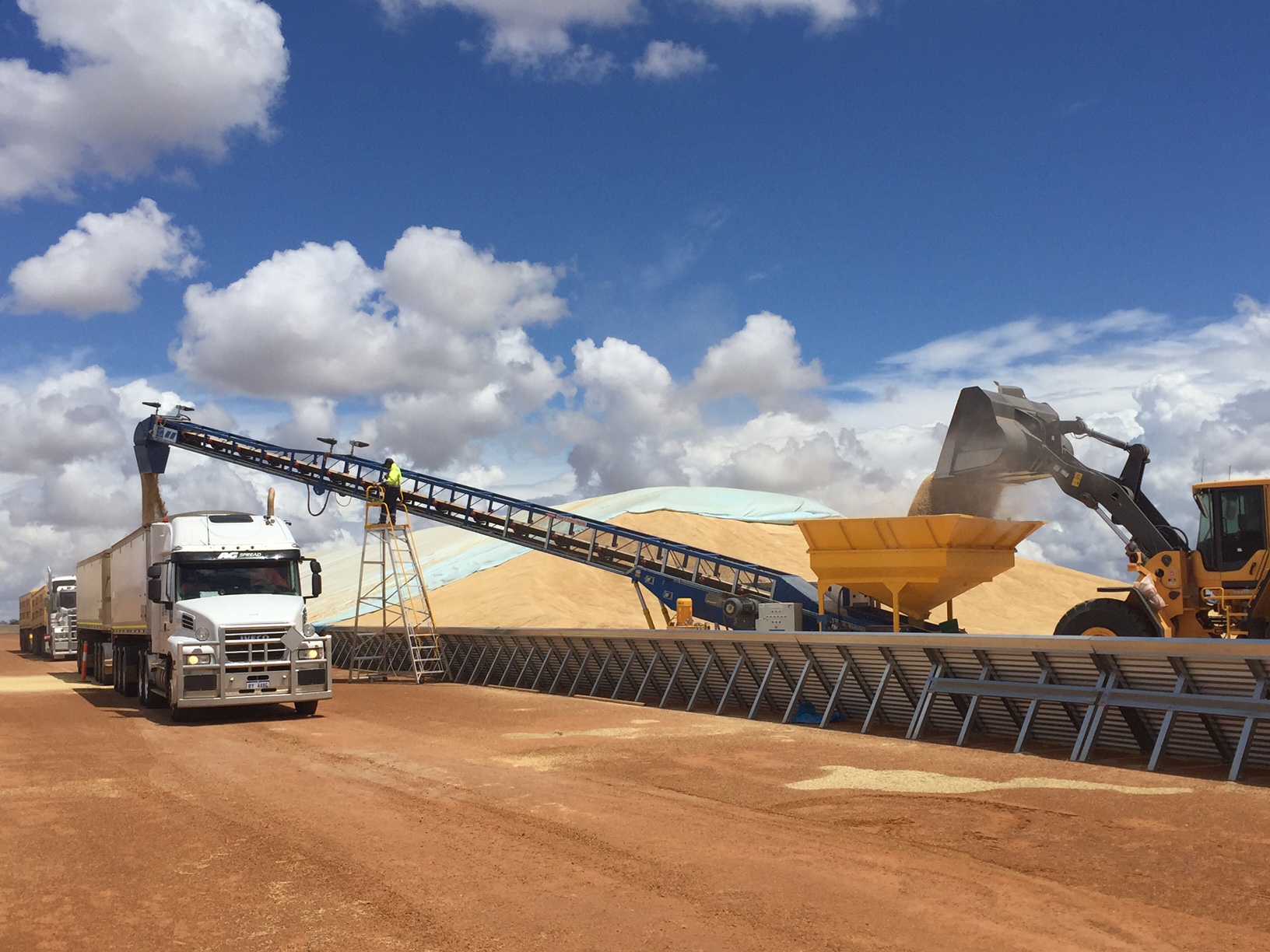

Stacker filling temporary storage

Outloading via BunkerStacker2000 fitted with surge hopper

Compact DOH loaded for transport

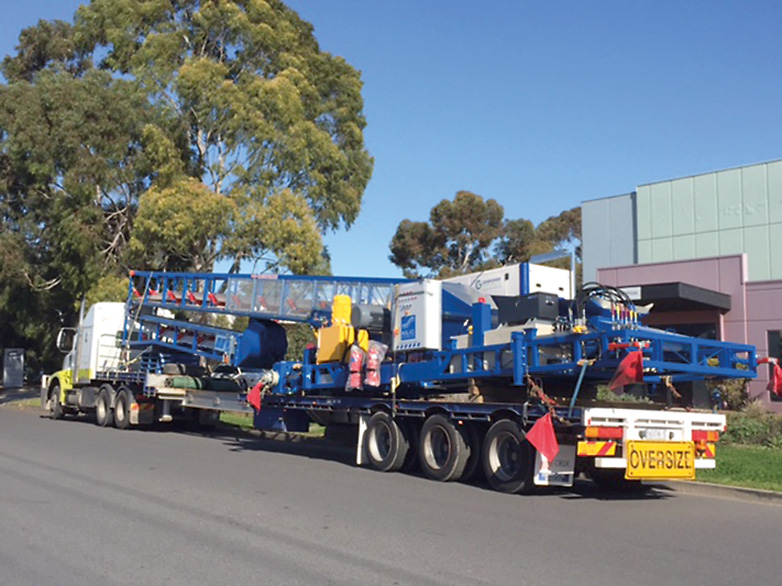

Stacker loaded ready for transport
